图像去噪

内容

  • 均值滤波

    利用 OpenCV 对灰度图像像素进行操作，分别利用算术均值滤波器、几何均值滤波器、谐波和逆谐波均值滤波器进行图像去噪。模板大小为 5*5。（分别为图像添加高斯噪声、胡椒噪声、盐噪声和椒盐噪声，并观察滤波效果）

  • 中值滤波

    利用 OpenCV 对灰度图像像素进行操作，利用 5*5 尺寸的模板对图像进行中值滤波。（分别为图像添加高斯噪声、胡椒噪声、盐噪声和椒盐噪声，并观察滤波效果）

  • 自适应均值滤波

    利用 OpenCV 对灰度图像像素进行操作，设计自适应局部降低噪声滤波器去噪算法。模板大小7*7。（对比均值滤波器的效果）

  • 自适应中值滤波

    利用 OpenCV 对灰度图像像素进行操作，设计自适应中值滤波算法对椒盐图像进行去噪。模板大小 7*7（对比中值滤波器的效果）

添加噪声

高斯噪声

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
void addGaussianNoise(Mat& srcImage, Mat& dstImage, double mean, double stddev)
{
	dstImage = srcImage.clone();

	// 使用均值为mean、标准差为stddev的高斯分布生成噪声
	std::default_random_engine generator;
	std::normal_distribution<double> distribution(mean, stddev);

	for (int i = 0; i < srcImage.rows; i++) {
		for (int j = 0; j < srcImage.cols; j++) {
			for (int c = 0; c < srcImage.channels(); c++) {
				if (srcImage.channels() == 1) {
					dstImage.at<uchar>(i, j) = saturate_cast<uchar>(srcImage.at<uchar>(i, j) + distribution(generator));
				}
				else if (srcImage.channels() == 3) {
					dstImage.at<Vec3b>(i, j)[c] = saturate_cast<uchar>(srcImage.at<Vec3b>(i, j)[c] + distribution(generator));
				}
			}
		}
	}
}

胡椒噪声

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
void addPepperNoise(Mat& srcImage, Mat& dstImage, double pepperRatio)
{
	dstImage = srcImage.clone();
	int totalPixels = srcImage.rows * srcImage.cols;
	int numPepperPixels = static_cast<int>(totalPixels * pepperRatio);

	std::default_random_engine generator;
	std::uniform_int_distribution<int> distribution(0, totalPixels - 1);

	for (int i = 0; i < numPepperPixels; i++) {
		int randomIndex = distribution(generator);
		int row = randomIndex / srcImage.cols;
		int col = randomIndex % srcImage.cols;
		if (srcImage.channels() == 1) {
			dstImage.at<uchar>(row, col) = 0; // 设置为黑色
		}
		else if (srcImage.channels() == 3) {
			dstImage.at<Vec3b>(row, col) = Vec3b(0, 0, 0); // 设置为黑色
		}
	}
}

盐噪声

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
void addSaltNoise(Mat& srcImage, Mat& dstImage, double saltRatio)
{
	dstImage = srcImage.clone();
	int totalPixels = srcImage.rows * srcImage.cols;
	int numSaltPixels = static_cast<int>(totalPixels * saltRatio);

	std::default_random_engine generator;
	std::uniform_int_distribution<int> distribution(0, totalPixels - 1);

	for (int i = 0; i < numSaltPixels; i++) {
		int randomIndex = distribution(generator);
		int row = randomIndex / srcImage.cols;
		int col = randomIndex % srcImage.cols;
		if (srcImage.channels() == 1) {
			dstImage.at<uchar>(row, col) = 255; // 设置为白色
		}
		else if (srcImage.channels() == 3) {
			dstImage.at<Vec3b>(row, col) = Vec3b(255, 255, 255); // 设置为白色
		}
	}
}

椒盐噪声

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
void addSaltPepperNoise(Mat& srcImage, Mat& dstImage, double saltRatio, double pepperRatio)
{
	dstImage = srcImage.clone();
	int totalPixels = srcImage.rows * srcImage.cols;
	int numSaltPixels = static_cast<int>(totalPixels * saltRatio);
	int numPepperPixels = static_cast<int>(totalPixels * pepperRatio);

	std::default_random_engine generator;
	std::uniform_int_distribution<int> distribution(0, totalPixels - 1);

	// 添加盐噪声
	for (int i = 0; i < numSaltPixels; i++) {
		int randomIndex = distribution(generator);
		int row = randomIndex / srcImage.cols;
		int col = randomIndex % srcImage.cols;
		if (srcImage.channels() == 1) {
			dstImage.at<uchar>(row, col) = 255; // 设置为白色
		}
		else if (srcImage.channels() == 3) {
			dstImage.at<Vec3b>(row, col) = Vec3b(255, 255, 255); // 设置为白色
		}
	}

	// 添加胡椒噪声
	for (int i = 0; i < numPepperPixels; i++) {
		int randomIndex = distribution(generator);
		int row = randomIndex / srcImage.cols;
		int col = randomIndex % srcImage.cols;
		if (srcImage.channels() == 1) {
			dstImage.at<uchar>(row, col) = 0; // 设置为黑色
		}
		else if (srcImage.channels() == 3) {
			dstImage.at<Vec3b>(row, col) = Vec3b(0, 0, 0); // 设置为黑色
		}
	}
}

噪声效果

高斯噪声(mean=0, stddev=30) 高斯噪声(mean=0, stddev=30)
胡椒噪声(p=0.1) 胡椒噪声(p=0.1)
盐噪声(p=0.1) 盐噪声(p=0.1)
椒盐噪声(p1=0.1, p2=0.1) 椒盐噪声(p1=0.1, p2=0.1)

均值滤波（size = 5）

算术均值滤波

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
void arithmetic_mean_filter(Mat& img, Mat& result, int size) {
	result = img.clone();
	int height = img.rows;
	int width = img.cols;
	int k = size / 2;
	double sum = 0;
	for (int i = k; i < height - k; i++) {
		for (int j = k; j < width - k; j++) {
			for (int c = 0; c < img.channels(); c++) {
				int sum = 0;
				for (int m = -k; m <= k; m++) {
					for (int n = -k; n <= k; n++) {
						if (img.channels() == 1) {
							sum += img.at<uchar>(i + m, j + n);
						}
						else if (img.channels() == 3) {
							sum += img.at<Vec3b>(i + m, j + n)[c];
						}
					}
				}
				if (img.channels() == 1) {
					result.at<uchar>(i, j) = sum / (size * size);
				}
				else if (img.channels() == 3) {
					result.at<Vec3b>(i, j)[c] = sum / (size * size);
				}
			}
		}
	}
}

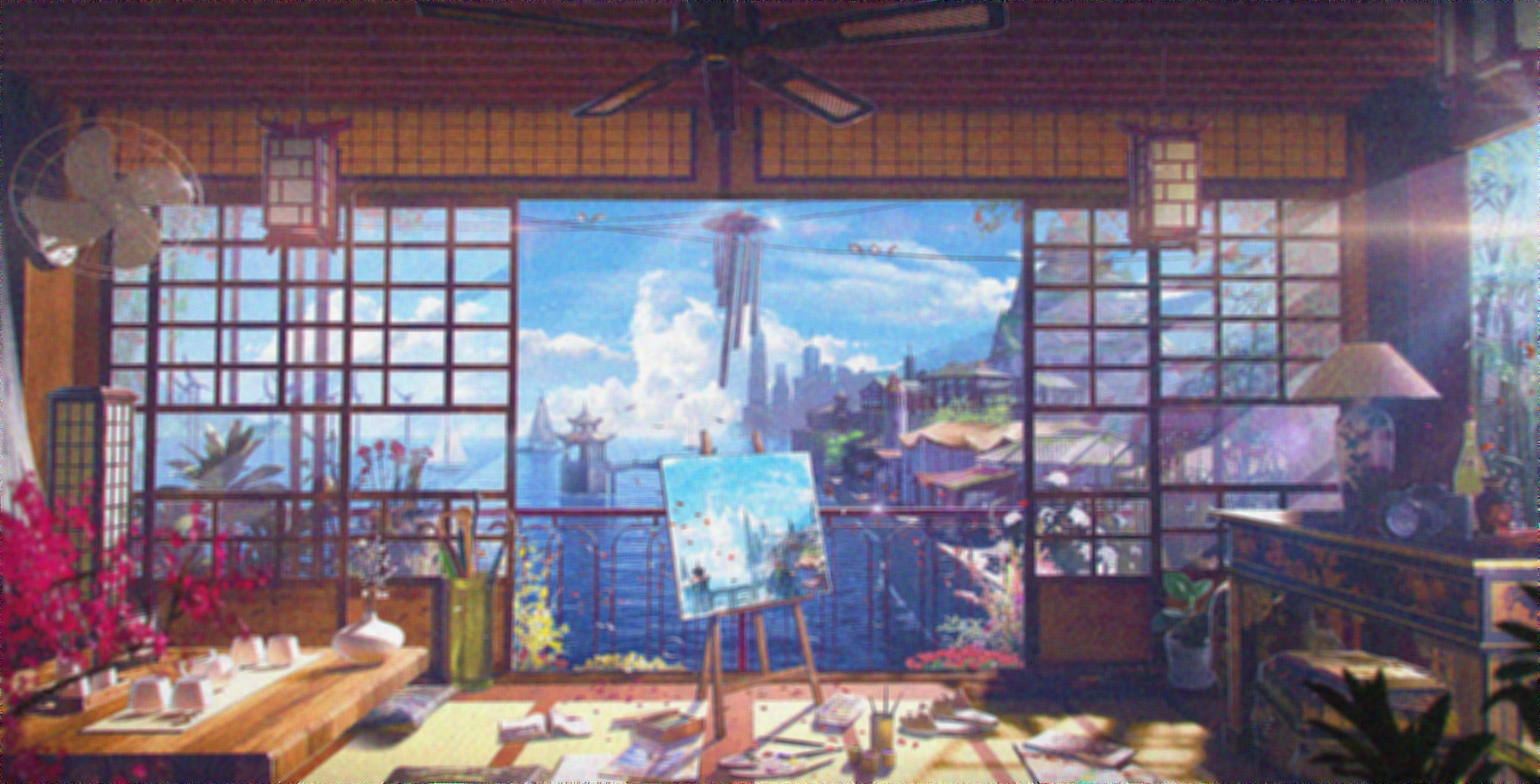

算术均值滤波效果

高斯噪声 高斯噪声
胡椒噪声 胡椒噪声
盐噪声 盐噪声
椒盐噪声 椒盐噪声

几何均值滤波

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
void geometric_mean_filter(Mat& img, Mat& result, int size) {
	result = img.clone();
	int height = img.rows;
	int width = img.cols;
	int k = size / 2;
	double sum = 0;
	for (int i = k; i < height - k; i++) {
		for (int j = k; j < width - k; j++) {
			for (int c = 0; c < img.channels(); c++) {
				sum = 1;
				for (int m = -k; m <= k; m++) {
					for (int n = -k; n <= k; n++) {
						if (img.channels() == 1) {
							sum *= img.at<uchar>(i + m, j + n);
						}
						else if (img.channels() == 3) {
							sum *= img.at<Vec3b>(i + m, j + n)[c];
						}
					}
				}
				if (img.channels() == 1) {
					result.at<uchar>(i, j) = pow(sum, 1.0 / (size * size));
				}
				else if (img.channels() == 3) {
					result.at<Vec3b>(i, j)[c] = pow(sum, 1.0 / (size * size));
				}
			}
		}
	}
}

几何均值滤波效果

高斯噪声 高斯噪声

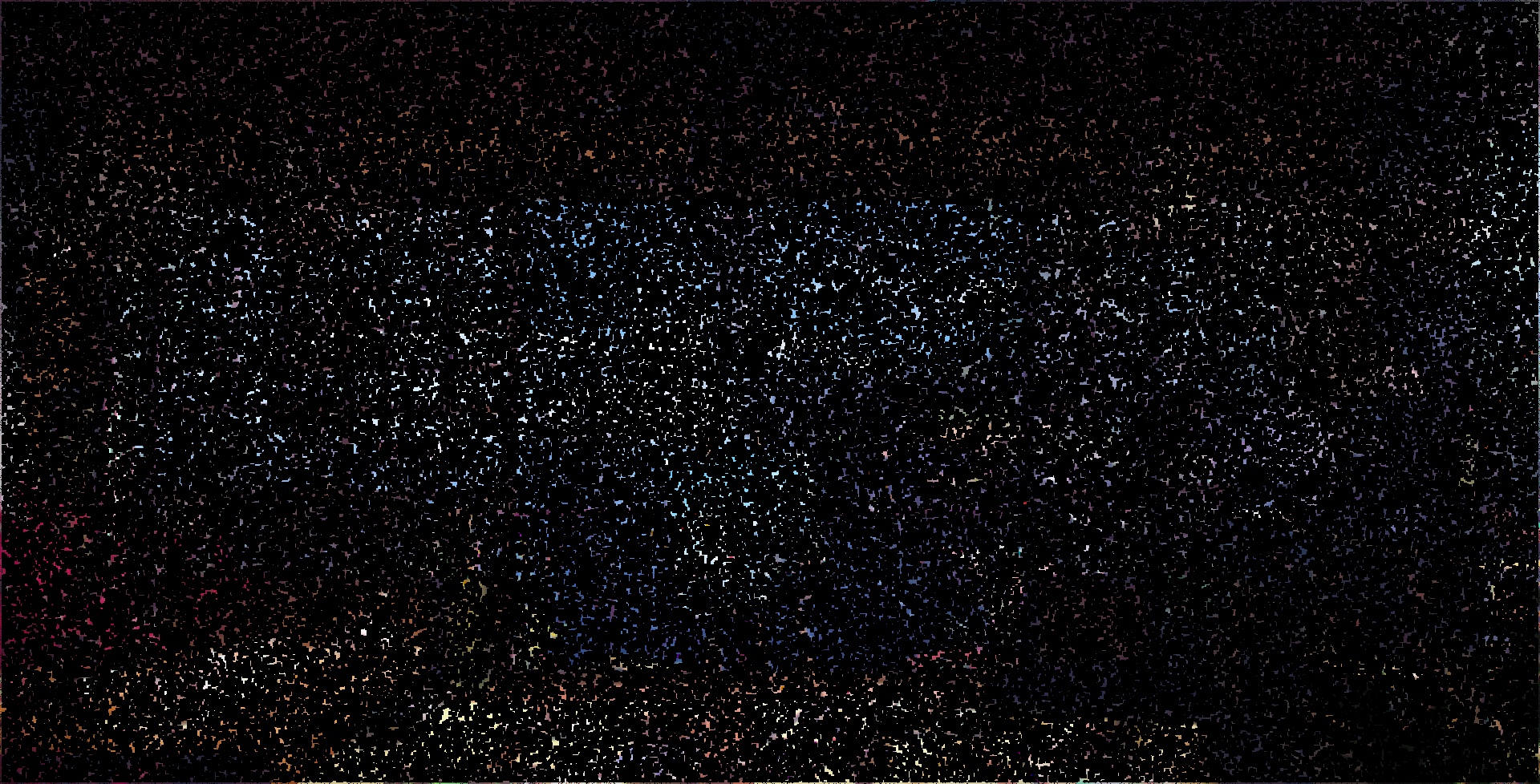

胡椒噪声 胡椒噪声
盐噪声 盐噪声
椒盐噪声 椒盐噪声

谐波均值滤波

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
void harmonic_mean_filter(Mat& img, Mat& result, int size) {
	result = img.clone();
	int height = img.rows;
	int width = img.cols;
	int k = size / 2;
	double sum = 0;
	for (int i = k; i < height - k; i++) {
		for (int j = k; j < width - k; j++) {
			for (int c = 0; c < img.channels(); c++) {
				sum = 0;
				for (int m = -k; m <= k; m++) {
					for (int n = -k; n <= k; n++) {
						if (img.channels() == 1) {
							sum += 1.0 / img.at<uchar>(i + m, j + n);
						}
						else if (img.channels() == 3) {
							sum += 1.0 / img.at<Vec3b>(i + m, j + n)[c];
						}
					}
				}
				if (img.channels() == 1) {
					result.at<uchar>(i, j) = (size * size) / sum;
				}
				else if (img.channels() == 3) {
					result.at<Vec3b>(i, j)[c] = (size * size) / sum;
				}
			}
		}
	}
}

谐波均值滤波效果

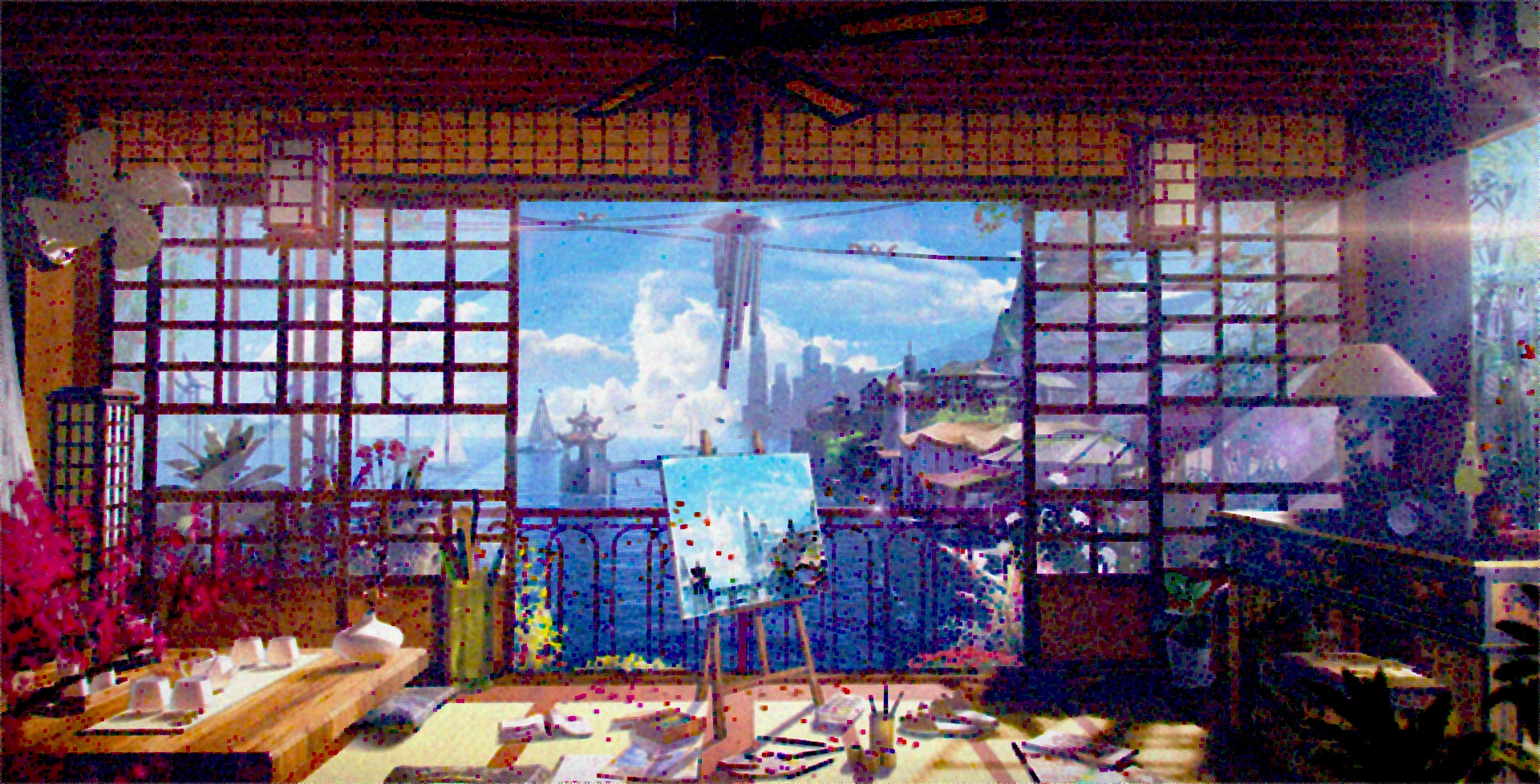

高斯噪声 高斯噪声
胡椒噪声 胡椒噪声
盐噪声 盐噪声
椒盐噪声 椒盐噪声

逆谐波均值滤

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
void contraharmonic_mean_filter(Mat& img, Mat& result, int size, double Q) {
	result = img.clone();
	int height = img.rows;
	int width = img.cols;
	int k = size / 2;
	double sum1 = 0;
	double sum2 = 0;
	for (int i = k; i < height - k; i++) {
		for (int j = k; j < width - k; j++) {
			for (int c = 0; c < img.channels(); c++) {
				sum1 = 0;
				sum2 = 0;
				for (int m = -k; m <= k; m++) {
					for (int n = -k; n <= k; n++) {
						if (img.channels() == 1) {
							sum1 += pow(img.at<uchar>(i + m, j + n), Q + 1);
							sum2 += pow(img.at<uchar>(i + m, j + n), Q);
						}
						else if (img.channels() == 3) {
							sum1 += pow(img.at<Vec3b>(i + m, j + n)[c], Q + 1);
							sum2 += pow(img.at<Vec3b>(i + m, j + n)[c], Q);
						}
					}
				}
				if (img.channels() == 1) {
					result.at<uchar>(i, j) = sum1 / sum2;
				}
				else if (img.channels() == 3) {
					result.at<Vec3b>(i, j)[c] = sum1 / sum2;
				}
			}
		}
	}
}

逆谐波均值滤波效果

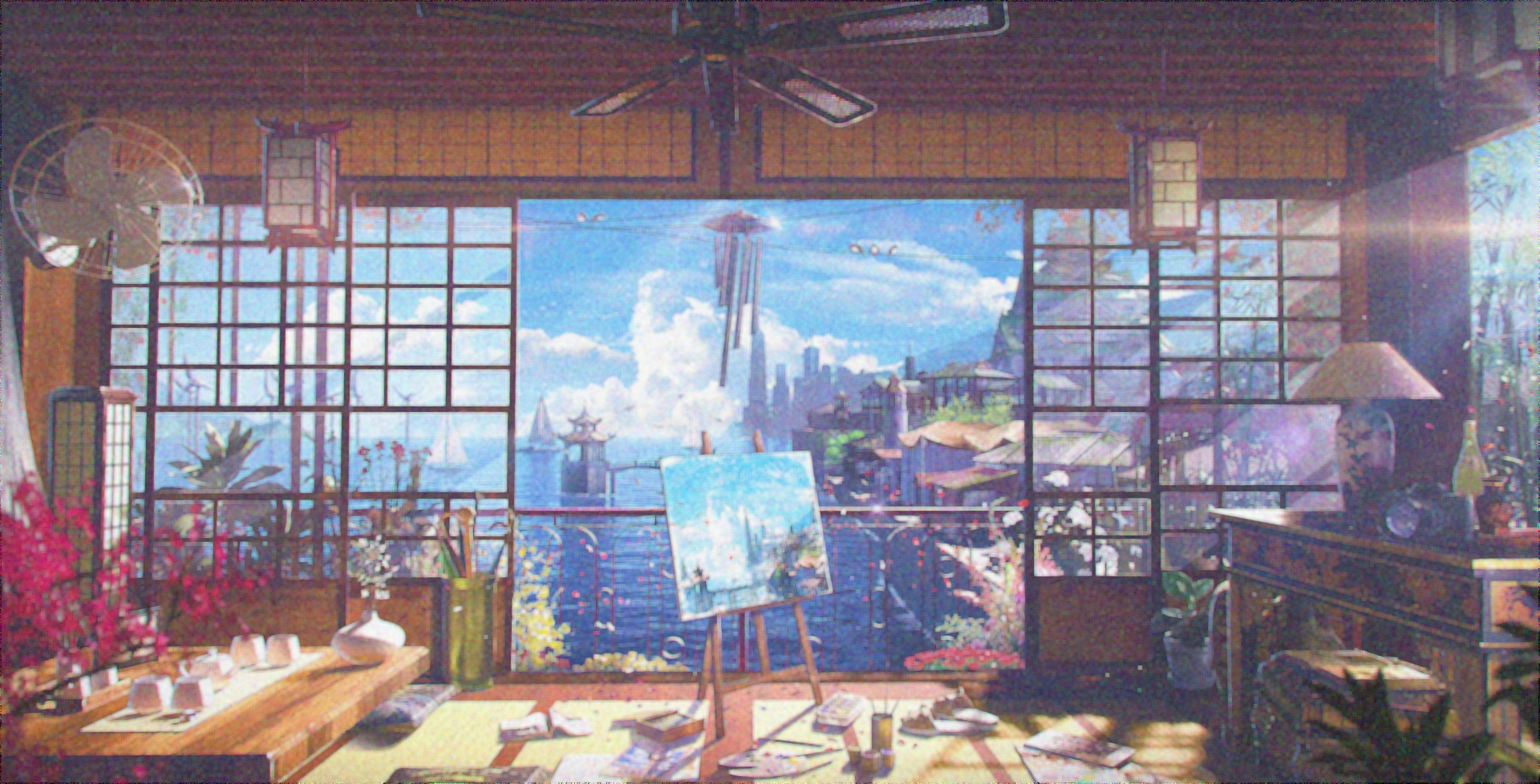

高斯噪声（filter.Q = 1.5） 高斯噪声（filter.Q = 1.5）
胡椒噪声（filter.Q = 1.5） 胡椒噪声（filter.Q = 1.5）

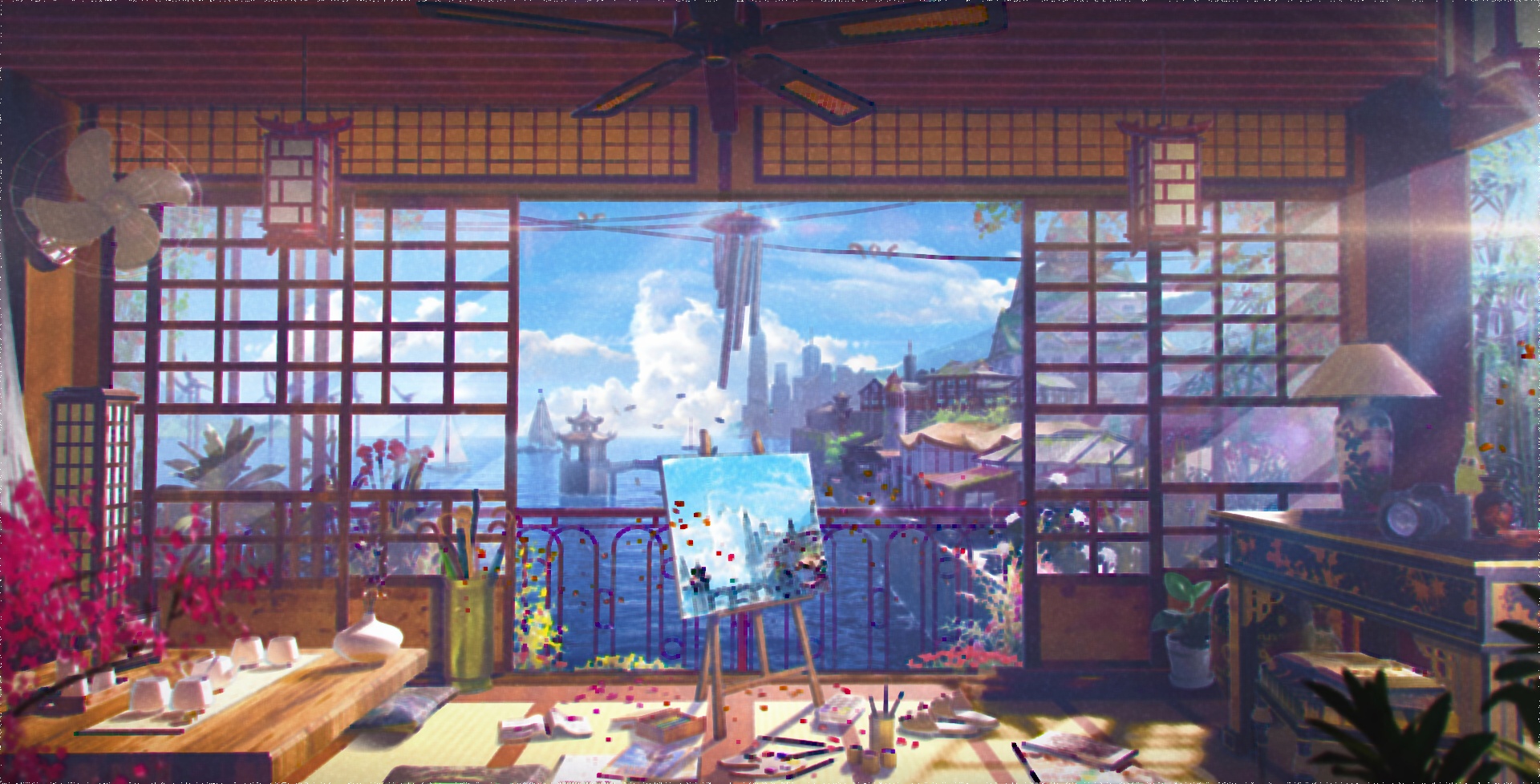

盐噪声（filter.Q = -1.5） 盐噪声（filter.Q = -1.5）

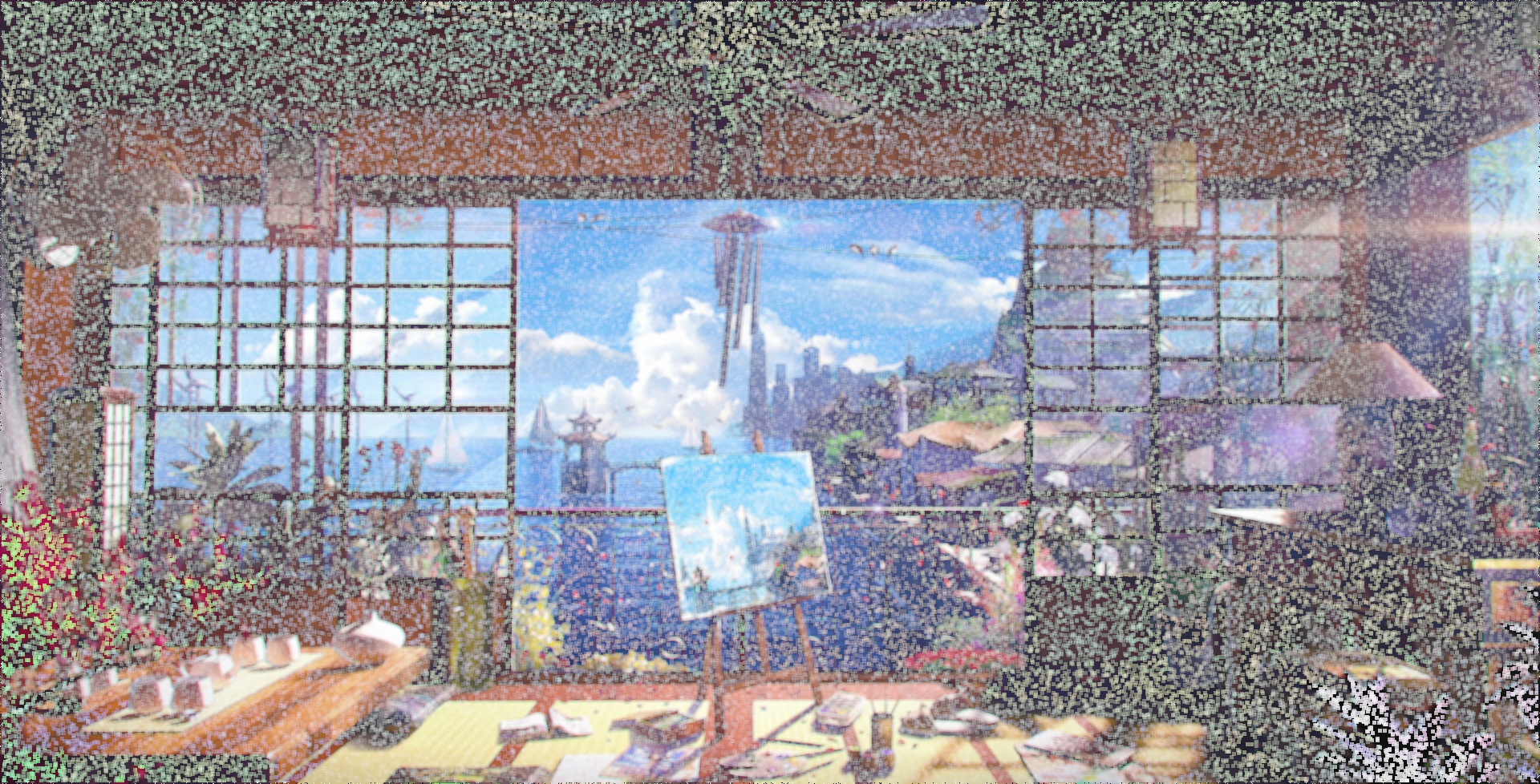

椒盐噪声（filter.Q = 1.5） 椒盐噪声（filter.Q = 1.5）

自适应均值滤波

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
void adaptive_mean_filter(Mat& srcImage, Mat& dstImage, int size)
{
	dstImage = srcImage.clone();
	int height = srcImage.rows;
	int width = srcImage.cols;
	int k = size / 2;

	// 估算
	//cv::Scalar image_mean, image_stddev;
	//if (srcImage.channels() == 1) { // 灰度图像
	//	cv::meanStdDev(srcImage, image_mean, image_stddev);
	//}
	//else if (srcImage.channels() == 3) { // 彩色图像
	//	cv::Mat image_channels[3];
	//	cv::split(srcImage, image_channels);
	//	cv::Scalar channel_means[3];
	//	cv::Scalar channel_stddevs[3];

	//	for (int i = 0; i < 3; i++) {
	//		cv::meanStdDev(image_channels[i], channel_means[i], channel_stddevs[i]);
	//	}

	//	double total_mean = (channel_means[0][0] + channel_means[1][0] + channel_means[2][0]) / 3.0;
	//	double total_stddev = sqrt((channel_stddevs[0][0] * channel_stddevs[0][0] + channel_stddevs[1][0] * channel_stddevs[1][0] + channel_stddevs[2][0] * channel_stddevs[2][0]) / 3.0);

	//	image_mean = cv::Scalar(total_mean);
	//	image_stddev = cv::Scalar(total_stddev);
	//}
	//double variance = pow(image_stddev[0], 2);
	double variance = 900;	// 直接采用与高斯噪声方差匹配的值
	for (int i = k; i < height - k; i++) {
		for (int j = k; j < width - k; j++) {
			for (int c = 0; c < srcImage.channels(); c++) {
				if (srcImage.channels() == 1) {
					double gxy = srcImage.at<uchar>(i, j);
					double xy_mean = 0;
					for (int m = -k; m <= k; m++) {
						for (int n = -k; n <= k; n++) {
							xy_mean += srcImage.at<uchar>(i + m, j + n);
						}
					}
					xy_mean /= (size * size);
					double xy_variance = 0;
					for (int m = -k; m <= k; m++) {
						for (int n = -k; n <= k; n++) {
							xy_variance += pow(srcImage.at<uchar>(i + m, j + n) - xy_mean, 2);
						}
					}
					xy_variance /= (size * size);
					if (variance / xy_variance > 1.0) {
						dstImage.at<uchar>(i, j) = saturate_cast<uchar>(xy_mean);
					}
					else {
						dstImage.at<uchar>(i, j) = saturate_cast<uchar>(gxy - (variance / xy_variance) * (gxy - xy_mean));
					}
				}
				else if (srcImage.channels() == 3) {
					double gxy = srcImage.at<Vec3b>(i, j)[c];
					double xy_mean = 0;
					for (int m = -k; m <= k; m++) {
						for (int n = -k; n <= k; n++) {
							xy_mean += srcImage.at<Vec3b>(i + m, j + n)[c];
						}
					}
					xy_mean /= (size * size);
					double xy_variance = 0;
					for (int m = -k; m <= k; m++) {
						for (int n = -k; n <= k; n++) {
							xy_variance += pow(srcImage.at<Vec3b>(i + m, j + n)[c] - xy_mean, 2);
						}
					}
					xy_variance /= (size * size);
					if (variance / xy_variance > 1.0) {
						dstImage.at<Vec3b>(i, j)[c] = saturate_cast<uchar>(xy_mean);
					}
					else {
						dstImage.at<Vec3b>(i, j)[c] = saturate_cast<uchar>(gxy - (variance / xy_variance) * (gxy - xy_mean));
					}
				}
			}
		}
	}
}

自适应均值滤波效果

高斯噪声 stddev=30 算术均值滤波
自适应均值滤波 stddev=30 自适应均值滤波（stddev由全局方差估算）

均值滤波总结

  • 算术均值滤波效果相近，会模糊图像
  • 几何均值滤波适合处理盐噪声，但不适合有胡椒的噪声，即灰度是接近0的像素点产生影响较大
  • 谐波滤波适合处理盐噪声，但不适合有胡椒的噪声，即灰度是接近0的像素点产生影响较大
  • 逆谐波滤波不适合椒盐噪声，对于胡椒噪声和盐噪声应该选择不同符号的Q值
  • 自适应中值滤波相比算术均值滤波更加清晰，但是需要知道噪声的方差。如果估算的方差和噪声方差相差较大，则效果接近算术均值滤波，效果不明显

中值滤波

中值滤波

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
void median_filter(Mat& img, Mat& result, int size) {
	result = img.clone();
	int height = img.rows;
	int width = img.cols;
	int k = size / 2;
	vector<int> v;
	for (int i = k; i < height - k; i++) {
		for (int j = k; j < width - k; j++) {
			for (int c = 0; c < img.channels(); c++) {
				v.clear();
				for (int m = -k; m <= k; m++) {
					for (int n = -k; n <= k; n++) {
						if (img.channels() == 1) {
							v.push_back(img.at<uchar>(i + m, j + n));
						}
						else if (img.channels() == 3) {
							v.push_back(img.at<Vec3b>(i + m, j + n)[c]);
						}
					}
				}
				sort(v.begin(), v.end());
				if (img.channels() == 1) {
					result.at<uchar>(i, j) = v[v.size() / 2];
				}
				else if (img.channels() == 3) {
					result.at<Vec3b>(i, j)[c] = v[v.size() / 2];
				}
			}
		}
	}
}

中值滤波效果（size = 5）

高斯噪声 高斯噪声
胡椒噪声 胡椒噪声
盐噪声 盐噪声
椒盐噪声 椒盐噪声

自适应中值滤波（size = 7）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
void adaptive_median_filter(Mat& srcImage, Mat& dstImage, int size)
{
	dstImage = srcImage.clone();
	int height = srcImage.rows;
	int width = srcImage.cols;

	int kstart = size / 2;
	int Smax = size;
	vector<int> v;
	for(int i = kstart; i < height - kstart; i++) {
		for (int j = kstart; j < width - kstart; j++) {
			for (int c = 0; c < srcImage.channels(); c++) {
				int Sxy = 3;
				int k = Sxy / 2;
				while (Sxy < Smax) {
					v.clear();
					for (int m = -k; m <= k; m++) {
						for (int n = -k; n <= k; n++) {
							if (srcImage.channels() == 1) {
								v.push_back(srcImage.at<uchar>(i + m, j + n));
							}
							else if (srcImage.channels() == 3) {
								v.push_back(srcImage.at<Vec3b>(i + m, j + n)[c]);
							}
						}
					}
					sort(v.begin(), v.end());
					int zmin = v[0];
					int zmax = v[v.size() - 1];
					int zmed = v[v.size() / 2];
					int zxy = 0;
					if (srcImage.channels() == 1) {
						zxy = srcImage.at<uchar>(i, j);
					}
					else if (srcImage.channels() == 3) {
						zxy = srcImage.at<Vec3b>(i, j)[c];
					}
					if (zmed > zmin && zmed < zmax) {
						if (zxy > zmin && zxy < zmax) {
							if (srcImage.channels() == 1) {
								dstImage.at<uchar>(i, j) = zxy;
							}
							else if (srcImage.channels() == 3) {
								dstImage.at<Vec3b>(i, j)[c] = zxy;
							}
						}
						else {
							if (srcImage.channels() == 1) {
								dstImage.at<uchar>(i, j) = zmed;
							}
							else if (srcImage.channels() == 3) {
								dstImage.at<Vec3b>(i, j)[c] = zmed;
							}
						}
						break;
					}
					else {
						Sxy += 2;
						k = Sxy / 2;
					}
				}
			}
		}
	}
}

自适应中值滤波效果

椒盐噪声（p1=0.1，p2=0.1） 椒盐噪声（p1=0.25，p2=0.25）
中值滤波（size=7） 中值滤波（size=7）
中值滤波（size=3） 中值滤波（size=3）
自适应中值滤波（Smax=7） 自适应中值滤波（Smax=7）

中值滤波总结

  • 中值滤波更加适合处理带椒盐噪声
  • 自适应中值滤波一般而言，在p>0.2时效果更好。如果用普通的中值滤波，采用size7则图片模糊，采用size3则处理不干净。在p<0.2时，则用size3的普通中值滤波效果更好
